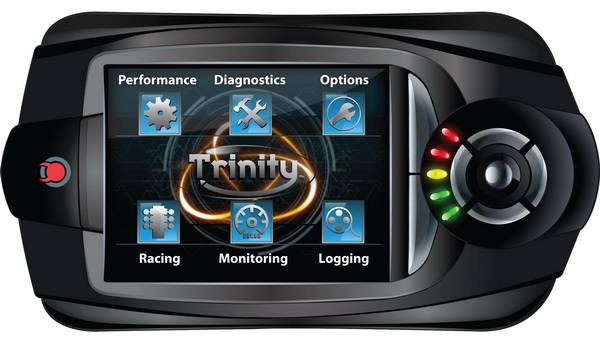

Chevrolet Corvette DiabloSport Trinity Programmer - T1000

DiabloSport803032
Chevrolet Corvette DiabloSport Trinity Programmer - T1000
Fits: 2006-2009 Chevrolet Corvette
Hi Resolution, Color Touch Screen visible in almost any light condition gives users ultimate control over gauges and tuning functions

Featuring:
  • Hi Resolution, Color Touch Screen visible in almost any light condition gives users ultimate control over gauges and tuning functions
  • Monitor and Record (5 hours) 9 pages of digital gauges, with 5 gauges per page for a whopping 45 different parameters at your fingertips simultaneously.
  • Check and clear Diagnostic Trouble Codes (DTCs) with easy to understand descriptions
  • Input external to record and monitor as a virtual gauge via the 2 channel 5 Volt analog Input/Output (Example Extreme PowerPuck Control, EGT, Air Fuel, Boost)
  • 1 Part number can tune Ford, Chevy and Dodge vehicles for up to 180 Wheel HorsePower! (Application Specific)
  • Free online updates with included USB Cable

    DiabloSport Trinity Programmer
    What is the Diablosport Trinity?

    The DiabloSport Trinity is simply put, one of the most advanced tuning devices in the market. With the capability to tune, log and record data, display and customize virtual gauges, read and clear trouble codes. and even compute multiple track times the DiabloSport Trinity is the answer to all of your EFI tuning needs. Trinity supports all vehicle application under a single part number which means you have the option to tune multiple vehicles with only one Trinity (Only 1 vehicle can be tuned at any given time). With a high resolution color touch screen, state of the art graphics/GUI, and the ability to customize gauge layouts the Trinity enhances the interior of any vehicle. The Trinity also has the capabilty to control/communicate extrenal devices such as the DiabloSport Extreme PowerPuck, DiabloSport EGT Module, and other third party devices.

    Performance Programmer
    The Trinity's tuning options vary depending on the vehicle that is being tuned. Gasoline powered vehicles feature tunes based on minimum octane ratings while Diesels are based on Horse Power Ratings. By way of example, If you have a 2008 Chrysler 300C your options in the tuning menu might be: 93 Octane Performance tune, 91 Octane Performance Tune, and other CAI tunes; and a 2007 F-350 with a 6.0L PowerStroke might have the options of stock, 40 HP, 65 HP, and 100 HP. (Note:These options may not be the same in all models and can vary based on the current update of the tool). The DiabloSport also supports custom tuning and can hold an additional 5 custom tunes. The Trinity also contains the most adjustable parameters in the market.

    Virtual Gauge Mode
    With over 100MB of on board memory devoted solely to recording and playing back diagnostic PID/DMR data, it allows users to record hours and hours of continuous data streams directly from the vehicle's PCM/ECM. The Trinity interprets PID and DMR data received from the OBD-II Diagnostic port on your vehicle and converts it into a readable format: A Virtual Gauge! Individual user customization is one of Trinity's most recgonizable features. With Trinity's dynamic gauge layout there is literally an infinite number of combinations/customization of gauges to view! Users can even set up gauge alarms and shift points based on precise vehicle data and using the Trinity's LED lights.

    Virtual Drag Strip
    Using parameters such as vehicle speed, peak torque, wheel speed and others, the Trinity is able to accurately compute quarter mile, 1/8 mile or 0-60 and 0-100 time trials. Keep in mind that these numbers may or may not be accurate depending on variables, but they sure are fun to see! The Trinity's virtual tree allows users to choose to either monitor their reaction time (like the real world) or have the tree start when they press the gas from a stop. There are advantages to both! If you are using reaction time, you will gain experience for the track when launching off the line while the motion start will show you the time less human error. It's your choice as to which you prefer!

    Diagnostic Code Reader
    Trinity can also be used as a diagnostic code reader. Save yourself hundreds of dollars each year reading/clearing your own computer codes rather than paying a dealer to do the same. Its as easy as a few simple steps. The DiabloSport Trinity's diagnostic code reader function can be used on multiple Vehicles at any given time.

    Trinity Features:
  • Comes pre-loaded with multiple tunes for your vehicle including Economy, Factory, Performance, Towing, Extreme, CAI Tunes, Pulley Tunes, and many more (tune selection may vary from vehicle to vehicle)
  • Built in Diagnostic Tool-save hundreds in dealership charges reading and clearing your own trouble codes (check engine lights)
  • With over 100MB of onboard memory log/record hours of data
  • Virtual Gauges-customize your own gauge layout
  • View and record dozens of gauges at once
  • Tune multiple supported vehicles (only 1 at a time).
  • Supports custom tuning-accepts up to 5 additonal custom tunes
  • The most adjustable parameters on the market including speed limiter, tire sizes and many more!
  • Virtual Dragstrip-computes 1/4 mile, 1/8 mile, 0-60, and 0-100 track times. Option to start from a reaction tree or once accelerator is engaged
  • Analog input/output to control external devices such as the DiabloSport Extreme PowerPuck and DiabloSport EGT Module
  • Set up your own gauge alarms/shift lights using the Trinity's LED lights
  • Control the Extreme PowerPuck's power levels using the Trinity's interface
  • High Resolution 320x240 Full Color Touch Screen

    Whats in the box
  • 1 DiabloSport Trinity
  • 1 DiabloSport USB Cable
  • 1 DiabloSport OBD2 Cable
  • 1 Trinity Windshield Mount
  • 1 Trintiy Software CD
  • 1 Trinity Quick Start Guide
  • 1 DiabloSport Sticker

    Trinity Custom Tuning
    The Trinity can hold up to 5 custom tunes made by any CMR dealer nationwide, the upload process is less than 30sec. This makes the Trinity a valuable product to have. If you tuned your vehicle from stock and like the power your car is producing, most likely you will start adding modifications to your car as time goes on. Good thing you have a Trinity because u can go to any of our CMR dealers and get a custom tune for your exact modification setup. Your car will run better, faster and get the best gas mileage that can be achieved for that particular modification setup.
  • Was: $688.99
    Sale: $619.99
    Save: 10%
    Save: $69.00

    Qty:

    Description

    Fits: 2006-2009 Chevrolet Corvette
    Hi Resolution, Color Touch Screen visible in almost any light condition gives users ultimate control over gauges and tuning functions

    Installation

    Professional Installation is Recommended.

    Chevrolet Corvette DiabloSport Trinity Programmer - T1000 Fits:
  • 2006-2009 Chevrolet Corvette Z06 7.0L LS7
