Mitsubishi Lancer Agency Power Twin Scroll Turbo Kit - AP-CZ4A-100
AP-CZ4A-100
- Mitsubishi Lancer Agency Power Twin Scroll Turbo Kit - AP-CZ4A-100
- Fits: 2008 & Up Mitsubishi EVO X
- Includes: Turbo, 2 Tial 44mm external Wastegates, oil lines with fittings, 1 header, 2 wastegate dump tubes, Upper Intercooler pipe, 1 turbo suction pipe, water lines with Fittings
Agency Power is proud to be the first in the world to release a complete Garrett bolt on turbo upgrade for the new Mitsubishi EVO X. This turbo upgrade features all the hard parts you need to take your EVO X to the next level.

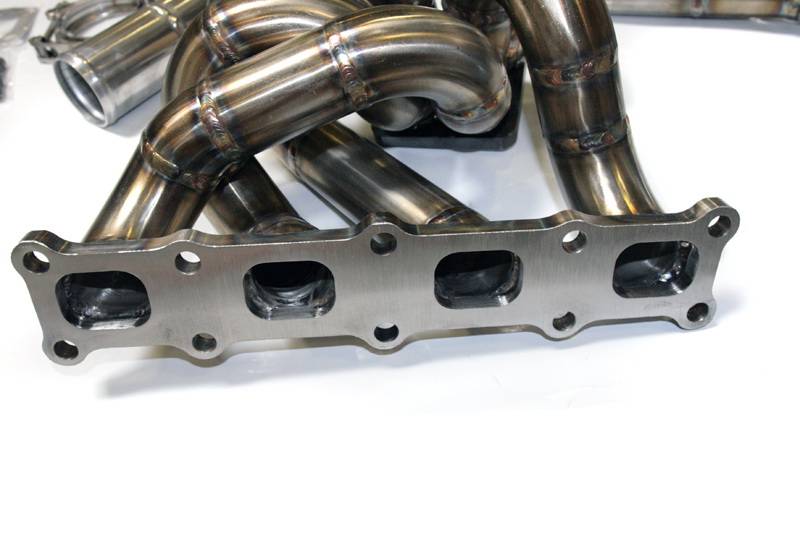

The turbo kit features all made in the USA components which are a direct replacement for the OEM turbo parts. The hand made TIG welded header features a true merged collector for proper exhaust flow. The 1/2 inch thick stainless steel flange is CNC machined for a precise flush fit to the engine. From the header, we run twin Tial 44mm external wastegates with V-Band clamps that run dump tubes straight to the ground. Each dump tube features a flex joint and bracket for a secure fit as it shoots flames from the serious power. The kit features a new turbo suction pipe and upper intercooler pipe needed to match up to the twin scroll Garrett GT35R turbo.
The intercooler pipe is a 2 piece unit with a bracket for a secure fit on the radiator support beam. The intercooler pipe fits to the stock or aftermarket front mount intercooler with the provided silicone coupler. This pipe is available in a polished finish. The turbo suction pipe is designed to mount up to the stock air intake system or the Agency Power short ram intake. It features the provisions for the blow off valve return, breather line, and boost fittings necessary like OEM. To keep the Garrett GT35R turbo cool, Agency Power supplies proper water and oil lines with fittings to bolt up to the factory locations.

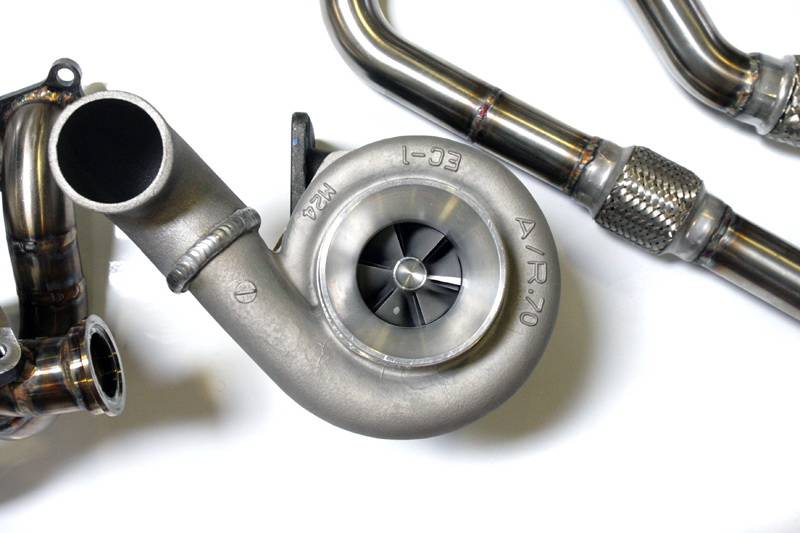

The large GT35R twin scroll turbo mounts to the exhaust system by a V-Band clamp 3 inch downpipe. The downpipe has a flex joint to provide necessary room for movement as the engine flexes its massive power. The downpipe is designed to bolt up to the factory catalytic converter or our Agency Power Cat Delete Pipe. This twin scroll GT35R turbocharger provides the 2.0L engine with quick spool up and serious top end power. Based on the dyno sheets, you can see peak boost being achieved in the mid range RPM's. That makes this kit a great daily driver and road racing turbo setup as well having the ability to run low 11 second quarter mile times.
With the sold separately Agency Power parts including a Front Mount Intercooler, Catback Exhaust, Cat Delete Pipe, Short Ram Intake, Upgraded Injectors, Upgraded Fuel Pump, and ECU Flash, this bolt on kit put down 510 horsepower on 91 octane at 20psi of boost and 600 horsepower on C16 race gas with stock internals. The C16 race gas map at 30psi of boost held a perfect air fuel reading. With further custom tuning, the addition of larger camshafts, and stronger head studs, this turbo kit will produce an easy 650-700 horsepower.
The Agency Power GT35R Twin Scroll Turbo Kit for the new Mitsubishi EVO X is available through authorized Agency Power EVO X parts distributors ONLY. The kit includes: 1 x Twin Scroll GT35R Turbo, 2 x Tial 38mm MVS External Wastegates, Oil Lines w/Fittings, Water Lines w/Fittings, 1 x Twin Scroll Header, 2 x Wastegate Dump Tubes, 1 x 3 inch Downpipe, 1 x 2piece Upper Intercooler Pipe, 1 x Turbo Suction Pipe. For custom powdercoat colors of the intercooler pipe and turbo suction pipe, please contact customer service.
Agency Power Industries LLC was developed out of the need to provide quality, functional, and fashionable racing products. Starting from sway bar endlinks for the Subaru WRX back in 2003, Agency Power now has and indepth number of parts for cars ranging from Porsche, BMW, Ferrari, Subaru, Mitsubishi, Nissan to many more. Based out of Gilbert, Arizona, Agency Power has established itself as one the core aftermarket companies for niche tuner products. Agency Power is constantly developing new functional and race proven products. With dealers worldwide, the AP brand is recognized and trusted. Beyond the USA, Agency Power can be found in regions such as Singapore, Canada, Australia, South Africa, Russia, United Kingdom, and other parts of the EU.
Innovative products like the EVO rear control arms, STI fuel rails, RX8 pulley kit, and 996TT boost hoses, give Agency Power an edge to truly make a difference to your performance vehicle. Agency Power manufacturers its products only after indepth product testing, racing, and quality checks are completed. Products like our full titanium muffler catback exhausts, GT35R turbo kits, and adjustable sway bars keep AP at the front of the competition. AP parts have been featured in magazines such as Modified, DSport, Import Tuner, Total 911, Bimmer, Super Street, and more.
Was:
$6,998.99
Sale:
$5,599.99
Save:
20%
Save:
$1,399.00
Description
Fits: 2008 & Up Mitsubishi EVO X
Installation
Professional installation is recommended.
Details
- AP-CZ4A-100
- AP-CZ4A-100
- Agency Power
- New
Categories
Shipping Information
- Item Requires Shipping
- $100.00
