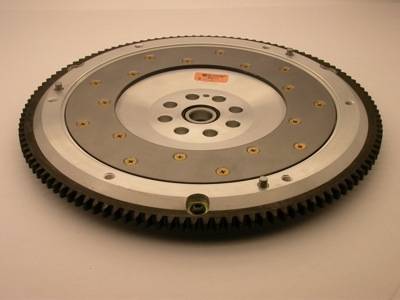

Ford Ranger Fidanza Aluminum Flywheel - 186231

Ford Ranger Fidanza Aluminum Flywheel - 186231
Fits: 1983-1988 Ford Ranger 2.0L

Note: Includes 8.5", 9" & 9.5" clutch patterns

Uses Plate Part# 229001

Aluminum Flywheels
Our aluminum flywheels are made from the highest quality 6061 T6 aluminum. The material is fantastic for strength, heat dissipation and of course reduction in weight. The friction surface we use is an incredibly strong 1045 steel. The plates are milled to meet our high specifications.

A Fidanza flywheel can mate with any type of clutch material, including organic, kevlar, ceramic, metallic and sintered iron. We attach the replaceable friction surface with military grade aerospace fasteners. With these replaceable plates there is no need to replace the entire flywheel when the clutch or flywheel is at the end of it?s life, saving time and money. The ring gears we use are also made from 1050 steel and are heat treated for durability. The gears are heated then pressed on and secured with grade 8 button screws.

Fidanza was the first to utilize a stepped dowel system in most of our flywheel applications. This doweling method ensures that once the pressure plate is installed the dowels cannot be removed because they become locked into place. No chromemoly can compete with the awesome serviceability, strength and superior design of Fidanza?s aluminum flywheels. If there was a better material out there, we would be using it.

Hardware

STEPPED DOWELS: ONCE PRESSURE PLATE IS INSTALLED THEY BECOME LOCKED IN PLACE

FASTENERS: MILITARY SPEC QUALITY

REPLACEABLE FRICTION PLATE: 1045 STEEL

RING GEAR: 1050 STEEL / HEAT TREATED FOR DURABILITY

BODY: 6061 T6 ALUMINUM
